| Place of Origin | China |
| Brand Name | KOMCO |
| Model Number | QCL-20A |

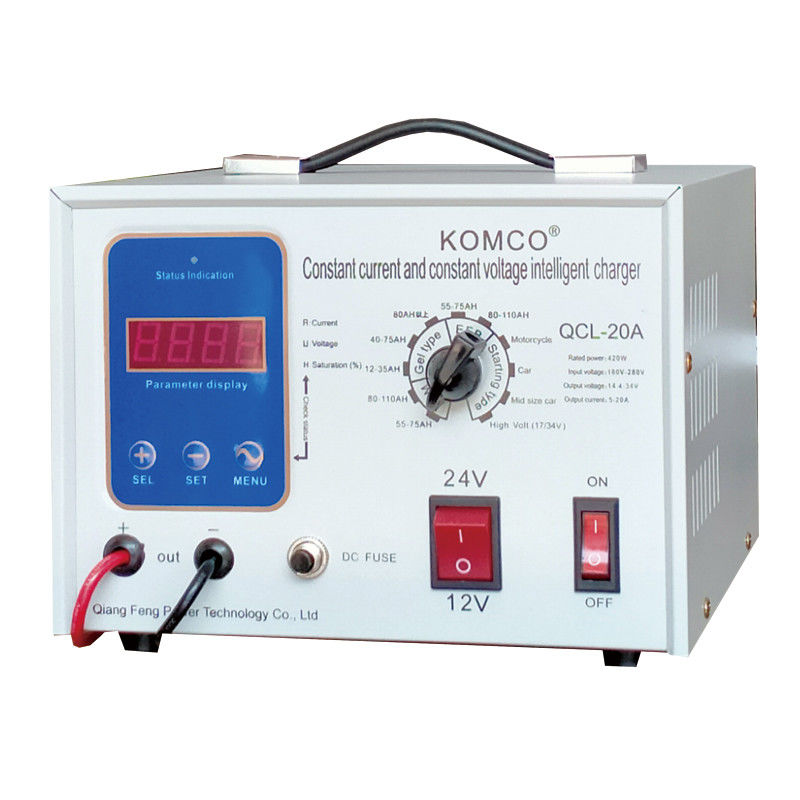

12v24v36v48v60v72v AUTO battery charger
1) Support various modes of voltage with covering of different types of lead acid battery .include AGM & EFB . Different types of battery can be switched to work spontaneously
2) Assure stable electric current and voltage output by providing 4 stages for charging scheme, can prolong the use of batteries efficiently.
3) Cease automatically when battery full with no over-charging guarantee. Battery lacking of power can also be fully charged.
4) Can floating charge the battery for a long period of time when connecting with generator,UPS...etc
5) Built-in battery recovery feature , ability to charge zero voltage battery.
6) Offer multiple packaged or tailor-made specifications.
| QCL-C1220 | QCL-C1230 | QCL-C1250 | |
| Input Voltage | 200-265V | ||
| Frequency | 47-63HZ | ||
| OutputVoltage | 14V-34V | ||
| Current | 5-20A adjust | 8-30A adjust | 15-50A adjust |
| Battery | AGMEFB,PowerSarting and Gel battery | ||
| Polarity reversed | Overcurrent - reset switch protection | ||
| Short circuit | CPU control,Current-Limited+Turn off delay | ||
| Wrong battery | 12V for 2 batteries-- No current output. 24V for 1 battery-- Still wroking,but automatic stop function would be invalid. |
||
| Over-temp. | CPU shut off when the temperature up to 60 ℃ | ||
| Operating temp. | -10~+45℃ | ||
| Storage temp. | -40~60℃ | ||
| Fan wil working 2mins when start, and auto stop when current less than 8A. | |||
| Weight | 7KG | 8.5KG | 14.5KG |
| Size L*W*H(mm) | 24*23*17CM | 28*28*24CM | |
