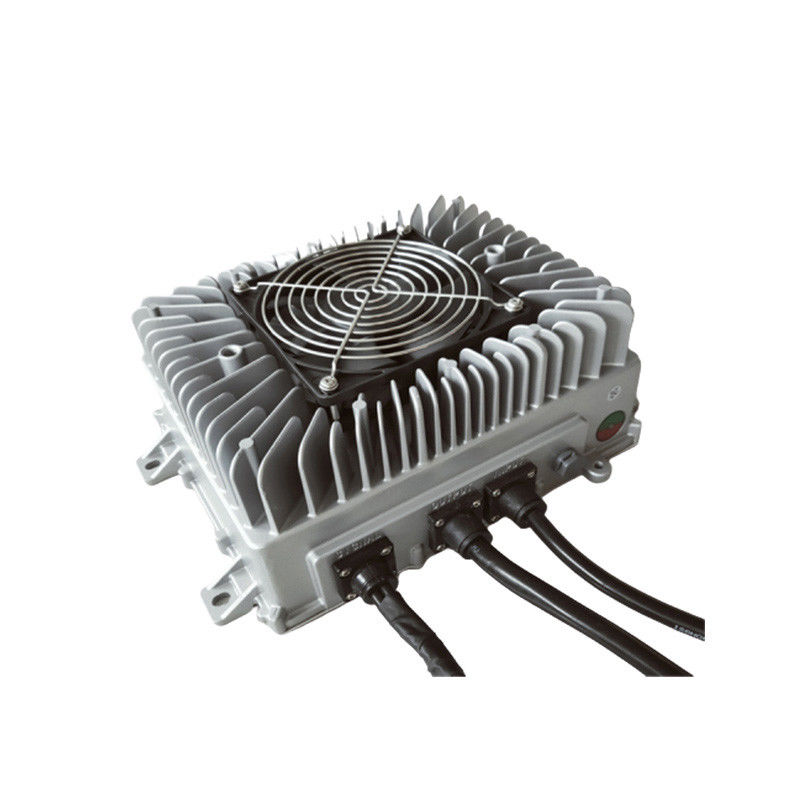

48v 72v 96v 144v 312 Battery Charger Onboard
Product features
1) Up to 95% efficiency;
2) Strong protection function;
3) Wide range of operating temperatures;
4) 100% full load aging test;
5) Up to IP66 high protection level;
6) The seismic rating of automobile;
7) In the process of charging the battery for intelligent temperature compensation to maximize the battery life.
|
Input |
Frequency rate |
45-65Hz |
| Standby power consumption | ≤ 5W | |
|
Main output |
Output type | Constant pressure/current |
| Output power |
800w 1500w 2000w 3300W 6600W 9900w 13kw |
|
| CV Accuracy | ±1% | |
| CC Accuracy | ±1% | |
| Ripple voltage coefficient | 5% | |
|
Low voltage output |
Output type | CV |
| Output voltage | 13.8V | |
| Rated current | 5A | |
| Precision of constant voltage | ±2% | |
| Max current | 5.5A±0.5A | |
| Output power | ≥ 62.5W | |
| Ripple voltage coefficient | 1% | |
|
CAN Communication |
CAN communication | Optional |
| Baud rate | 125Kbps,250Kbps,500Kbps | |
| Terminating resistor | No |
