| Place of Origin | China |
| Brand Name | KOMCO |
| Model Number | KO-QCLB |

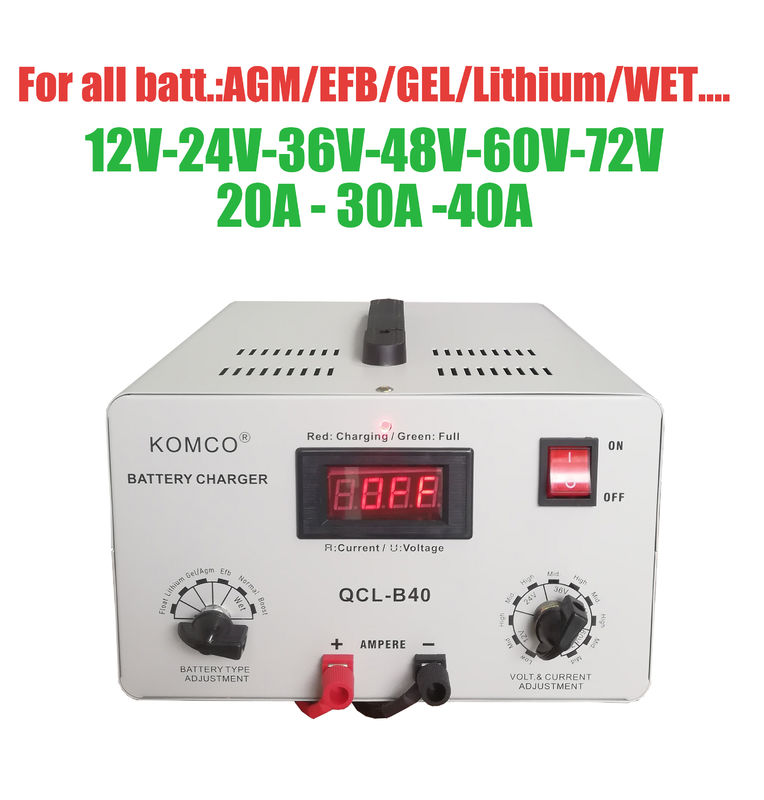

Adjustable Battery Charger 12V 24V 36V 48V 60V 72V Smart LCD Display Pulse Repair Desulfator Automotive Maintainer
QCL chargers utilize an isolation transformer to convert high-voltage, low-current power to low-voltage, high-current power. They also use a bridge rectifier to convert AC input to pulsating DC output, with the output voltages and current controlled by a CPU.
These chargers are versatile and can be used with different battery types, including power batteries, capacity batteries, and start-up batteries. They are compatible with 6V, 8V, 12V, or 24V...72V systems, and you can combine lithium-ion or lead-acid batteries with corresponding voltages. The QCL chargers are designed to autonomously handle the charging process and will automatically stop charging once the batteries are fully charged, removing the need for continuous monitoring.
Additionally, these chargers offer devulcanization repair and equalization modes. The equalizing charge mode helps balance the batteries and extends their lifespan by compensating for any imbalances between them.
Key points to note:
QCL series battery chargers are specifically designed for charging battery packs with different voltages (6V, 8V, 12V, or 24V...72V). It's important to ensure that the charger's voltage output matches your battery pack requirements.
The charger's output current is adjustable, and it includes an internal protection circuit to limit the maximum charging current and prevent overloading. The charging speed varies based on the charger's amperage. It's essential to select the appropriate charger amperage and charging speed that are suitable for your batteries.
| Parameter | Value |
|---|---|
| Product Name | Golf Cart Battery Chargers |
| Brand | KOMCO |
| Input Voltage | AC 90~264V |
| Output Current | 5A-40A |
| Charging Time | 6-10 Hours |
| Battery type | All Lead-Acid And LiFePO4 Batteries |
| Weight | 5-11 Kg |
| Dimensions | 290*247*157mm |
| Operating Temperature | -20℃~+50℃ |
| Storage Temperature | -40℃~+85℃ |
| 48V charger | Yes |
| Lithium battery charger | Yes |
| 72V charger | Yes |
KOMCO's KO-QCLB lithium battery charger is an ideal choice for golf cart battery charging. With a rated output current range of 5A-40A, the KO-QCLB enables to charge your golf cart battery in 6-10 hours while operating in a temperature range of -20℃~+50℃ and storage temperature range of -40℃~+85℃. It also offers constant current and constant voltage charging modes, making it a great option for 48V, 60V, and 72V golf carts. KOMCO's lithium battery charger is designed to ensure optimal performance and is perfect for any golf cart battery charging needs.
KOMCO golf cart battery chargers are the perfect solution for golf cart, EV, and lithium battery charging needs. With an IP67 protection level and an input voltage of AC 90~264V, you can be sure that your chargers will be able to handle whatever comes their way. And with a 1 Year warranty and a weight of 11 Kg, you can trust that these chargers are built to last.
We offer technical support and service for our Golf Cart Battery Chargers. Our team of experts is available to answer any questions you may have and provide assistance with installation, troubleshooting, and repair. We also provide detailed product information and resources to help you make the most out of your purchase.
If you have any questions or would like to speak with one of our technical support specialists, please contact us at support@golfcartbatterychargers.com.
Golf cart battery chargers are packaged securely in cardboard boxes with foam-lined interiors for protection against shock, vibration, and extreme temperatures. Additionally, the box is labeled with the product name and serial number.
Golf cart battery chargers are shipped via ground freight and typically arrive within 5-7 business days. Customers can also opt for expedited shipping, such as 3-day air or 2-day air, for an additional charge.
